NZFMM 1997 Feilding Convention page 2 of 7

John Ince's H.M.S. Endeavour

H.M.S. Endeavour was the ship used by Captain Cook who sailed from England in the 18th century on a voyage of discovery especially in the Pacific Ocean.  The ship was tiny by today's standards with an overall length of 106 feet.  The Meccano model, built by John Ince, is to a scale of 1:65 this being determined by the 5½" x 2½" flexible plates used for the sails.  They are yellow of Binns Road vintage.   Most of the rest of the model is constructed from strips in a shiny nickel finish.

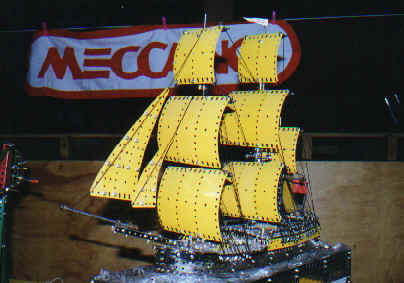

HMS Endeavour

H.M.S. Endeavour.  The model rests on a sea of clear plastic film, crinkled to represent the water.  Underneath is a mechanism which imparts both pitch and roll to the ship.  These two motions are out of phase so that the viewer may experience a degree of discomfort - sea sickness? - if the motion is watched for too long.





The model enjoyed a brief period of glory when positioned beside the gangway onto the full size replica which visited Lyttelton, the port for Christchurch.  John built the model in time for the 1995 Christchurch Convention.  It is likely to reappear at the 1999 Auckland Convention if it remains seaworthy!

An article on this model was also published in the May 1997 Journal of the International Society of Meccanomen.

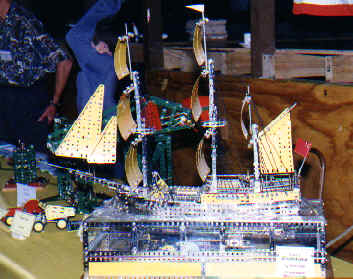

HMS Endeavour port view

Swivel Bearing part 165Part 165

Fork Piece Small part 116aPart 116a

End Bearing part 166Part 166
